Plus sized mountain bike repowered to carry the grandkids and get out there
Bike specifications:
Bike Brand:
Polygon
Bike Model:
Diablo
Bike Year:
2020
Frame Size:
Large
Wheel Size:
29″
Bottom Bracket:
ISO Threaded internal 73mm
Browse our popular conversion components:
Bafang BBS01 36V 300W Motor
Battery Extension Cable
36V lithium ion battery DP-17ah
Un-stocked Item
Bafang BBS02 36V 500W Motor
3 Pin Extension
Converted - Lighting Kit
Hourly service charge
Spacer Bling Ring 2mm 01/02
36V lithium ion battery DP-6-24ah
Lekkie Bling Ring HD
Conversion specifications:
Motor:
Bafang HD 1000watt
battery:
48 Volts 17 Amp Hours
Range:
50-80 Km
Extra parts needed:
Lekkie Bling Ring 40T HD Package, Bottom Bracket Spacer Set, Lekkie Bling Ring Spacer 2mm HD
Conversion report:

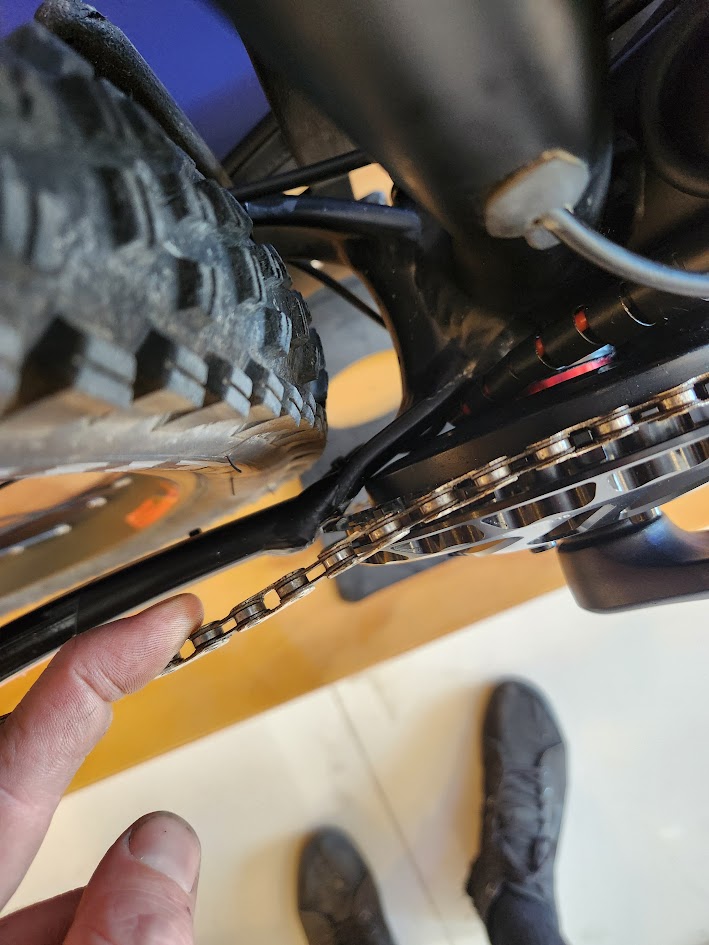

Required some frame modification to get a good chain-line. Had to take some material off the yoke. Was plenty of meat there. Needed 5mm of motor spacing on drive side to clear, 2mm Bling Ring Spacer, 2x 5mm Motorspacer. Note BBS02 would not work as would run out of thread.
Bike Performance:
The hard work paid off for this build. The 1000w paired with the 816wh battery absolutely rips!
